DS918+: HDD-LED (orange) zurücksetzen (grün) via CLI? (Status überall sonst normal)

[ds214se]

Hallo zusammen!

Nach dem Tausch einer von 4 HDDs (SHR/RAID6) an einer DS918+ und problemlosem Neuaufbau des RAIDs werden im DSM (7.2.2) alle 4 Laufwerke "in Ordnung" angezeigt. SMART-Tests (erweitert) zeigen keine Probleme, und auch eine anschließende Datenbereinigung wurde problemlos abgeschlossen.

Aber die LED dieses einen Laufwerks am DS-Gehäuse leuchtet selbst nach Neustart der DS918+ immer noch orange statt grün. Alle anderen LEDs (Status und 3 weitere Laufwerke) leuchten grün, und die Power-LED leuchtet blau.

Welchen Grund kann es geben, dass der LED-Status immer noch orange ist? Falls das nur kosmetischer Natur ist: Gibt es eine CLI-Lösung, die LED auf Grün zurückzusetzen?

Danke für Eure Hilfe!

PS:
Ich habe das in diesem Unterforum gepostet, da ich nach einer Lösung via CLI suche. Falls es auch anders geht und/oder hier am falschen Platz ist, bitte ich die Moderatoren höflichst, meinen Beitrag zu verschieben. Nochmals vielen Dank!



[maxblank]

Hallo,
im Log bzw. Protokoll alle Fehlermeldung löschen.
Es gibt auch ein Script, verlinke ich gleich.

Grüße
maxblank



[ds214se]

Vielen Dank schonmal! Das Skript interessiert mich sehr!
Die Benachrichtigungen habe ich eben geleert, aber muss ich tatsächlich alle Protokolle aus dem Protokoll-Center löschen? Ich wüsste nicht, ob/wie ich einzelne Einträge daraus entfernen kann, z.B. diese:

Fehler
System
2025-04-26 08:46:44
SYSTEM
Storage Pool [1] degraded [3/4 of drives remaining]. Please repair it.



[maxblank]

https://github.com/007revad/Synology_Clear_Drive_Error

Anleitung findest du dort. Wichtig ist es, dass du das Script als Root ausführst. Vorher in der Console sudo -i eingeben.



[Benares]

Das Script macht aber m.W. auch nichts anderes als das Laufwerk-Log im Protokoll-Center löschen.



[ds214se]

Ich schaue mir gerade das Shell-Skript an und versuche zu verstehen, was genau gelöscht wird:
https://raw.githubusercontent.com/0...ror/refs/heads/main/syno_clear_drive_error.sh

Passiert wohl hier:

# Delete matching entries of selected drive
sqlite3 "${file}" <<EOF
DELETE FROM logs
 WHERE level ="${level}"
   AND msg   ="${msg}"
   AND serial ="${serial}";
.quit
EOF



[Benares]

Ok, das Script von @DaveR löscht wohl selektiver. Im Protokoll-Center kann man nur das komplette Laufwerke-Log löschen, aber was soll's.



Der DSM macht den Laufwerkszustand auch am Vorhandensein von Warnungen oder Fehlern in diesem Log fest. Deshalb hilft das Löschen.



[ds214se]

Genau! Selbst wenn ich im DSM -> Protokoll-Center exakt nach diesen Einträgen suche (also lokal, Laufwerke, Suchbegriff "kritisch" und Level "Fehler") und nur diese Zeile sehe: Bei Klick auf "Löschen" kommt die Abfrage "Alle Protokolle werden gelöscht. Möchten Sie wirklich fortfahren?" Ich verstehe das so, dass dann wirklich alle Einträge gelöscht werden, also nicht nur eine Zeile, die gerade aufgrund der Filterung sichtbar ist. Oder irre ich mich? Ich will es nicht testen, denn im schlechten Fall sind dann alle Ereignisse komplett weg.

Vielleicht bastle ich mir schlicht ein stark vereinfachtes Skript, das nur die wesentlichen Zeilen mit `sqlite` enthält. Vorher wäre ein Backup von `/var/log/synolog/.SYNODISKDB` sinnvoll.



[Benares]

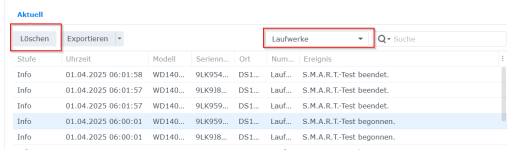

Kannst das Log ja vorher exportieren (s. den Button rechts neben "Löschen")



[ds214se]

Den kenne ich, aber zum Importieren gibt es leider nichts.



[Benares]

Brauchst ja nicht mehr. Das Log füllt sich wieder von alleine. Und für die alten Sachen hast ja noch dein Export.



[ds214se]

Klar! Und ich habe wieder etwas dazugelernt: Nachdem ich die Kategorie "Laufwerke" und das Level "Fehler" gewählt und gelöscht habe, wurden alle Einträge aus der Kategorie "Laufwerke" gelöscht, also auch Einträge mit Level "Info", aber Einträge aus anderen Kategorien ("Allgemein", "Verbindung" etc.) wurden nicht gelöscht. Somit scheint sich das Löschen im Protokoll-Center auf Kategorien zu beziehen (so zumindest meine Interpretation). Sobald ich diese DS neu starten kann, werde ich sehen, ob dann diese eine HDD-LED wieder grün statt orange leuchtet, und melde mich dann hier nochmal dazu.

PS: Diskstation neu gestartet. Leider leuchtet die eine HDD-LED immer noch orange.



[maxblank]

Dann reinige mal das NAS und die Anschlüsse der SATA-Backplane. Poste bitte mal die SMART-Werte aller verbauten Datenträger hier.

Die betroffene LED ist für den Schacht mit der neuen HDD?



[ds214se]

Dann reinige mal das NAS und die Anschlüsse der SATA-Backplane.

Danke, mache ich noch!

Die betroffene LED ist für den Schacht mit der neuen HDD?

Ja

Poste bitte mal die SMART-Werte aller verbauten Datenträger hier.

Es betrifft 2 Laufwerke (1+3, d.h. /dev/sda und /dev/sdc, beides Seagate HDDs).


Die anderen beiden Laufwerke (2+4, d.h. /dev/sdb und /dev/sdd sind Toshiba Enterprise HDDs, bei denen smartctl angibt, sie seien nicht S.M.A.R.T. kompatibel. Das kann ich nicht so ganz glauben, aber evtl. ist deren FW zu alt? Egal, denn die zeigen keine Probleme.

So beschränke ich mich auf die beiden Seagate HDDs, zu denen die Gehäuse-LEDs orange (statt grün) leuchten, obwohl wiederholte erweiterte S.M.A.R.T. Tests keine Hinweise auf Probleme gezeigt haben - zumindest nicht im DSM.

Ich habe die Outputs von smartctl7 aus der Konsole hier unten gepostet und auch miteinander verglichen. Obwohl beide zusammen eingesetzt wurden (eine ist 9217 h, die andere 9218 h powered on), fällt die 1. Segate HDD mit 264 Lifetime Power-on Resets mehr auf als die 2. Seagate HDD mit nur 59 Lifetime Power-on Resets. Evtl. ein Hinweis auf Undervoltage o.ä., was zu vermehrten Aus-/An-Zyklen der 1. HDD geführt hat? Da ich kein Experte bin, ist das reine Spekulation und erklärt ja auch nicht wirklich, warum die LEDs immer noch orange leuchten. Das NAS läuft immer 7/24.

Hier das Ergebnis von `smartctl7 -axl farm /dev/sda`:

smartctl 7.4 2023-08-01 r5530 [x86_64-linux-4.4.302+] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate Exos 7E8
Device Model:     ST8000NM000A-2KE101
Serial Number:    xxxxxxxx
LU WWN Device Id: 5 xxxxxx xxxxxxxxx
Firmware Version: SN02
User Capacity:    8,001,563,222,016 bytes [8.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database 7.3/5528
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Tue Apr 29 17:03:01 2025 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is:   Unavailable
APM feature is:   Unavailable
Rd look-ahead is: Enabled
Write cache is:   Disabled
DSN feature is:   Disabled
ATA Security is:  Disabled, NOT FROZEN [SEC1]
Write SCT (Get) Feature Control Command failed: scsi error badly formed scsi parameters
Wt Cache Reorder: Unknown (SCT Feature Control command failed)

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82)    Offline data collection activity
                    was completed without error.
                    Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (  559) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   1) minutes.
Extended self-test routine
recommended polling time:      ( 717) minutes.
Conveyance self-test routine
recommended polling time:      (   2) minutes.
SCT capabilities:            (0x70bd)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAGS    VALUE WORST THRESH FAIL RAW_VALUE
  1 Raw_Read_Error_Rate     POSR--   078   064   044    -    66175552
  3 Spin_Up_Time            PO----   090   090   000    -    0
  4 Start_Stop_Count        -O--CK   100   100   020    -    268
  5 Reallocated_Sector_Ct   PO--CK   100   100   010    -    0
  7 Seek_Error_Rate         POSR--   083   060   045    -    209975089
  9 Power_On_Hours          -O--CK   090   090   000    -    9218
 10 Spin_Retry_Count        PO--C-   100   100   097    -    0
 12 Power_Cycle_Count       -O--CK   100   100   020    -    264
 18 Head_Health             PO-R--   100   100   050    -    0
187 Reported_Uncorrect      -O--CK   100   100   000    -    0
188 Command_Timeout         -O--CK   100   100   000    -    0
190 Airflow_Temperature_Cel -O---K   063   055   040    -    37 (Min/Max 36/39)
192 Power-Off_Retract_Count -O--CK   100   100   000    -    244
193 Load_Cycle_Count        -O--CK   100   100   000    -    661
194 Temperature_Celsius     -O---K   037   045   000    -    37 (0 17 0 0 0)
195 Hardware_ECC_Recovered  -O-RC-   005   002   000    -    66175552
197 Current_Pending_Sector  -O--C-   100   100   000    -    0
198 Offline_Uncorrectable   ----C-   100   100   000    -    0
199 UDMA_CRC_Error_Count    -OSRCK   200   200   000    -    0
240 Head_Flying_Hours       ------   100   253   000    -    9215h+48m+47.424s
241 Total_LBAs_Written      ------   100   253   000    -    35803581705
242 Total_LBAs_Read         ------   100   253   000    -    280775816087
                            ||||||_ K auto-keep
                            |||||__ C event count
                            ||||___ R error rate
                            |||____ S speed/performance
                            ||_____ O updated online
                            |______ P prefailure warning

Ich kann nicht so viel in einem Beitrag schreiben wegen der Zeichenbegrenzung. Der Rest folgt separat...



[ds214se]

General Purpose Log Directory Version 1
SMART           Log Directory Version 1 [multi-sector log support]
Address    Access  R/W   Size  Description
0x00       GPL,SL  R/O      1  Log Directory
0x01           SL  R/O      1  Summary SMART error log
0x02           SL  R/O      5  Comprehensive SMART error log
0x03       GPL     R/O      5  Ext. Comprehensive SMART error log
0x04       GPL     R/O    256  Device Statistics log
0x04       SL      R/O      8  Device Statistics log
0x06           SL  R/O      1  SMART self-test log
0x07       GPL     R/O      1  Extended self-test log
0x08       GPL     R/O      2  Power Conditions log
0x09           SL  R/W      1  Selective self-test log
0x0a       GPL     R/W      8  Device Statistics Notification
0x0c       GPL     R/O   2048  Pending Defects log
0x10       GPL     R/O      1  NCQ Command Error log
0x11       GPL     R/O      1  SATA Phy Event Counters log
0x13       GPL     R/O      1  SATA NCQ Send and Receive log
0x15       GPL     R/W      1  Rebuild Assist log
0x21       GPL     R/O      1  Write stream error log
0x22       GPL     R/O      1  Read stream error log
0x24       GPL     R/O    768  Current Device Internal Status Data log
0x2f       GPL     R/O      1  Set Sector Configuration
0x30       GPL,SL  R/O      9  IDENTIFY DEVICE data log
0x80-0x9f  GPL,SL  R/W     16  Host vendor specific log
0xa1       GPL,SL  VS      24  Device vendor specific log
0xa2       GPL     VS   16320  Device vendor specific log
0xa4       GPL,SL  VS     160  Device vendor specific log
0xa6       GPL     VS     192  Device vendor specific log
0xa8-0xa9  GPL,SL  VS     136  Device vendor specific log
0xab       GPL     VS       1  Device vendor specific log
0xad       GPL     VS      16  Device vendor specific log
0xbe-0xbf  GPL     VS   65535  Device vendor specific log
0xc1       GPL,SL  VS       8  Device vendor specific log
0xc3       GPL,SL  VS      32  Device vendor specific log
0xc9       GPL,SL  VS       8  Device vendor specific log
0xca       GPL,SL  VS      16  Device vendor specific log
0xcd       GPL,SL  VS       8  Device vendor specific log
0xd1       GPL     VS     336  Device vendor specific log
0xd2       GPL     VS   10000  Device vendor specific log
0xd4       GPL     VS    2048  Device vendor specific log
0xda       GPL,SL  VS       1  Device vendor specific log
0xe0       GPL,SL  R/W      1  SCT Command/Status
0xe1       GPL,SL  R/W      1  SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged

SMART Error Log Version: 1
No Errors Logged

SMART Extended Self-test Log Version: 1 (1 sectors)
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      9212         -
# 2  Short offline       Completed without error       00%      9173         -
# 3  Short offline       Completed without error       00%      9132         -
# 4  Extended offline    Completed without error       00%      9105         -
# 5  Extended offline    Interrupted (host reset)      00%      9083         -
# 6  Short offline       Completed without error       00%      9075         -
# 7  Short offline       Completed without error       00%      8965         -
# 8  Short offline       Completed without error       00%      8797         -
# 9  Short offline       Completed without error       00%      8629         -
#10  Short offline       Completed without error       00%      8461         -
#11  Short offline       Completed without error       00%      8293         -
#12  Short offline       Completed without error       00%      8125         -
#13  Short offline       Completed without error       00%      7957         -
#14  Short offline       Completed without error       00%      7789         -
#15  Short offline       Completed without error       00%      7620         -
#16  Short offline       Completed without error       00%      7452         -
#17  Short offline       Completed without error       00%      7284         -
#18  Short offline       Completed without error       00%      7116         -
#19  Short offline       Completed without error       00%      6948         -

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      9212         -
# 2  Short offline       Completed without error       00%      9173         -
# 3  Short offline       Completed without error       00%      9132         -
# 4  Extended offline    Completed without error       00%      9105         -
# 5  Extended offline    Interrupted (host reset)      00%      9083         -
# 6  Short offline       Completed without error       00%      9075         -
# 7  Short offline       Completed without error       00%      8965         -
# 8  Short offline       Completed without error       00%      8797         -
# 9  Short offline       Completed without error       00%      8629         -
#10  Short offline       Completed without error       00%      8461         -
#11  Short offline       Completed without error       00%      8293         -
#12  Short offline       Completed without error       00%      8125         -
#13  Short offline       Completed without error       00%      7957         -
#14  Short offline       Completed without error       00%      7789         -
#15  Short offline       Completed without error       00%      7620         -
#16  Short offline       Completed without error       00%      7452         -
#17  Short offline       Completed without error       00%      7284         -
#18  Short offline       Completed without error       00%      7116         -
#19  Short offline       Completed without error       00%      6948         -
#20  Short offline       Completed without error       00%      6780         -
#21  Short offline       Completed without error       00%      6612         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version:                  3
SCT Version (vendor specific):       522 (0x020a)
Device State:                        Active (0)
Current Temperature:                    37 Celsius
Power Cycle Min/Max Temperature:     36/39 Celsius
Lifetime    Min/Max Temperature:     16/45 Celsius
Under/Over Temperature Limit Count:   0/0
SMART Status:                        0xc24f (PASSED)
Vendor specific:
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 02 00 00 00 00 00 00 00 00 00 00 00

SCT Temperature History Version:     2
Temperature Sampling Period:         3 minutes
Temperature Logging Interval:        59 minutes
Min/Max recommended Temperature:     10/40 Celsius
Min/Max Temperature Limit:            5/60 Celsius
Temperature History Size (Index):    128 (46)



[ds214se]

Index    Estimated Time   Temperature Celsius
  47    2025-04-24 12:04    38  *******************
 ...    ..(  8 skipped).    ..  *******************
  56    2025-04-24 20:55    38  *******************
  57    2025-04-24 21:54    36  *****************
  58    2025-04-24 22:53    34  ***************
  59    2025-04-24 23:52    36  *****************
 ...    ..(  2 skipped).    ..  *****************
  62    2025-04-25 02:49    36  *****************
  63    2025-04-25 03:48    35  ****************
 ...    ..(  4 skipped).    ..  ****************
  68    2025-04-25 08:43    35  ****************
  69    2025-04-25 09:42    36  *****************
  70    2025-04-25 10:41    36  *****************
  71    2025-04-25 11:40     ?  -
  72    2025-04-25 12:39    34  ***************
  73    2025-04-25 13:38    35  ****************
  74    2025-04-25 14:37    36  *****************
  75    2025-04-25 15:36    36  *****************
  76    2025-04-25 16:35    39  ********************
  77    2025-04-25 17:34    39  ********************
  78    2025-04-25 18:33    39  ********************
  79    2025-04-25 19:32    38  *******************
 ...    ..( 11 skipped).    ..  *******************
  91    2025-04-26 07:20    38  *******************
  92    2025-04-26 08:19    36  *****************
  93    2025-04-26 09:18    37  ******************
  94    2025-04-26 10:17    37  ******************
  95    2025-04-26 11:16    37  ******************
  96    2025-04-26 12:15    36  *****************
  97    2025-04-26 13:14    37  ******************
  98    2025-04-26 14:13    37  ******************
  99    2025-04-26 15:12    36  *****************
 100    2025-04-26 16:11    36  *****************
 101    2025-04-26 17:10    39  ********************
 ...    ..(  5 skipped).    ..  ********************
 107    2025-04-26 23:04    39  ********************
 108    2025-04-27 00:03    38  *******************
 ...    ..(  9 skipped).    ..  *******************
 118    2025-04-27 09:53    38  *******************
 119    2025-04-27 10:52    36  *****************
 120    2025-04-27 11:51    36  *****************
 121    2025-04-27 12:50    36  *****************
 122    2025-04-27 13:49    37  ******************
 123    2025-04-27 14:48    38  *******************
 124    2025-04-27 15:47    38  *******************
 125    2025-04-27 16:46    36  *****************
 126    2025-04-27 17:45    36  *****************
 127    2025-04-27 18:44     ?  -
   0    2025-04-27 19:43    36  *****************
 ...    ..( 11 skipped).    ..  *****************
  12    2025-04-28 07:31    36  *****************
  13    2025-04-28 08:30    37  ******************
  14    2025-04-28 09:29    37  ******************
  15    2025-04-28 10:28    37  ******************
  16    2025-04-28 11:27     ?  -
  17    2025-04-28 12:26    37  ******************
  18    2025-04-28 13:25    36  *****************
  19    2025-04-28 14:24    36  *****************
  20    2025-04-28 15:23    37  ******************
  21    2025-04-28 16:22    36  *****************
 ...    ..(  5 skipped).    ..  *****************
  27    2025-04-28 22:16    36  *****************
  28    2025-04-28 23:15    38  *******************
 ...    ..( 11 skipped).    ..  *******************
  40    2025-04-29 11:03    38  *******************
  41    2025-04-29 12:02    37  ******************
  42    2025-04-29 13:01    37  ******************
  43    2025-04-29 14:00    37  ******************
  44    2025-04-29 14:59    38  *******************
  45    2025-04-29 15:58    38  *******************
  46    2025-04-29 16:57    37  ******************

SCT Error Recovery Control:
           Read:    100 (10.0 seconds)
          Write:    100 (10.0 seconds)

Device Statistics (GP Log 0x04)
Page  Offset Size        Value Flags Description
0x01  =====  =               =  ===  == General Statistics (rev 1) ==
0x01  0x008  4             264  ---  Lifetime Power-On Resets
0x01  0x010  4            9218  ---  Power-on Hours
0x01  0x018  6     35803280845  ---  Logical Sectors Written
0x01  0x020  6       113177390  ---  Number of Write Commands
0x01  0x028  6    280775790110  ---  Logical Sectors Read
0x01  0x030  6       539297563  ---  Number of Read Commands
0x01  0x038  6               -  ---  Date and Time TimeStamp
0x03  =====  =               =  ===  == Rotating Media Statistics (rev 1) ==
0x03  0x008  4            9213  ---  Spindle Motor Power-on Hours
0x03  0x010  4            9213  ---  Head Flying Hours
0x03  0x018  4             661  ---  Head Load Events
0x03  0x020  4               0  ---  Number of Reallocated Logical Sectors
0x03  0x028  4               0  ---  Read Recovery Attempts
0x03  0x030  4               0  ---  Number of Mechanical Start Failures
0x03  0x038  4               0  ---  Number of Realloc. Candidate Logical Sectors
0x03  0x040  4             244  ---  Number of High Priority Unload Events
0x04  =====  =               =  ===  == General Errors Statistics (rev 1) ==
0x04  0x008  4               0  ---  Number of Reported Uncorrectable Errors
0x04  0x010  4               0  ---  Resets Between Cmd Acceptance and Completion
0x05  =====  =               =  ===  == Temperature Statistics (rev 1) ==
0x05  0x008  1              37  ---  Current Temperature
0x05  0x010  1              37  ---  Average Short Term Temperature
0x05  0x018  1              36  ---  Average Long Term Temperature
0x05  0x020  1              45  ---  Highest Temperature
0x05  0x028  1              17  ---  Lowest Temperature
0x05  0x030  1              42  ---  Highest Average Short Term Temperature
0x05  0x038  1              36  ---  Lowest Average Short Term Temperature
0x05  0x040  1              40  ---  Highest Average Long Term Temperature
0x05  0x048  1              36  ---  Lowest Average Long Term Temperature
0x05  0x050  4               0  ---  Time in Over-Temperature
0x05  0x058  1              60  ---  Specified Maximum Operating Temperature
0x05  0x060  4               0  ---  Time in Under-Temperature
0x05  0x068  1               5  ---  Specified Minimum Operating Temperature
0x06  =====  =               =  ===  == Transport Statistics (rev 1) ==
0x06  0x008  4               0  ---  Number of Hardware Resets
0x06  0x010  4               0  ---  Number of ASR Events
0x06  0x018  4               0  ---  Number of Interface CRC Errors
0xff  =====  =               =  ===  == Vendor Specific Statistics (rev 1) ==
0xff  0x010  7               0  ---  Vendor Specific
0xff  0x018  7               0  ---  Vendor Specific
                                |||_ C monitored condition met
                                ||__ D supports DSN
                                |___ N normalized value

Pending Defects log (GP Log 0x0c)
No Defects Logged

SATA Phy Event Counters (GP Log 0x11)
ID      Size     Value  Description
0x000a  2            1  Device-to-host register FISes sent due to a COMRESET
0x0001  2            0  Command failed due to ICRC error
0x0003  2            0  R_ERR response for device-to-host data FIS
0x0004  2            0  R_ERR response for host-to-device data FIS
0x0006  2            0  R_ERR response for device-to-host non-data FIS
0x0007  2            0  R_ERR response for host-to-device non-data FIS

Seagate Field Access Reliability Metrics log (FARM) (GP Log 0xa6)

Wenn ich die `FARM Log Page 0-5` Werte noch posten soll, mache ich das, aber das sind dann nochmal etliche Zeilen. Ansonsten wär's das bzgl. 1. Laufwerk (/dev/sda).



[ds214se]

Hier das Ergebnis von `smartctl7 -axl farm /dev/sdc` (3. Laufwerk, also 2. Seagate HDD):

smartctl 7.4 2023-08-01 r5530 [x86_64-linux-4.4.302+] (local build)
Copyright (C) 2002-23, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate Exos 7E8
Device Model:     ST8000NM000A-2KE101
Serial Number:    xxxxxxxx
LU WWN Device Id: 5 xxxxxx xxxxxxxxx
Firmware Version: SN02
User Capacity:    8,001,563,222,016 bytes [8.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database 7.3/5528
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Tue Apr 29 17:03:00 2025 CEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is:   Unavailable
APM feature is:   Unavailable
Rd look-ahead is: Enabled
Write cache is:   Disabled
DSN feature is:   Disabled
ATA Security is:  Disabled, NOT FROZEN [SEC1]
Write SCT (Get) Feature Control Command failed: scsi error badly formed scsi parameters
Wt Cache Reorder: Unknown (SCT Feature Control command failed)

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82)    Offline data collection activity
                    was completed without error.
                    Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0)    The previous self-test routine completed
                    without error or no self-test has ever
                    been run.
Total time to complete Offline
data collection:         (  559) seconds.
Offline data collection
capabilities:              (0x7b) SMART execute Offline immediate.
                    Auto Offline data collection on/off support.
                    Suspend Offline collection upon new
                    command.
                    Offline surface scan supported.
                    Self-test supported.
                    Conveyance Self-test supported.
                    Selective Self-test supported.
SMART capabilities:            (0x0003)    Saves SMART data before entering
                    power-saving mode.
                    Supports SMART auto save timer.
Error logging capability:        (0x01)    Error logging supported.
                    General Purpose Logging supported.
Short self-test routine
recommended polling time:      (   1) minutes.
Extended self-test routine
recommended polling time:      ( 714) minutes.
Conveyance self-test routine
recommended polling time:      (   2) minutes.
SCT capabilities:            (0x70bd)    SCT Status supported.
                    SCT Error Recovery Control supported.
                    SCT Feature Control supported.
                    SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAGS    VALUE WORST THRESH FAIL RAW_VALUE
  1 Raw_Read_Error_Rate     POSR--   080   064   044    -    96348069
  3 Spin_Up_Time            PO----   092   088   000    -    0
  4 Start_Stop_Count        -O--CK   100   100   020    -    60
  5 Reallocated_Sector_Ct   PO--CK   100   100   010    -    0
  7 Seek_Error_Rate         POSR--   083   060   045    -    204886711
  9 Power_On_Hours          -O--CK   090   090   000    -    9217
 10 Spin_Retry_Count        PO--C-   100   100   097    -    0
 12 Power_Cycle_Count       -O--CK   100   100   020    -    59
 18 Head_Health             PO-R--   100   100   050    -    0
187 Reported_Uncorrect      -O--CK   100   100   000    -    0
188 Command_Timeout         -O--CK   100   100   000    -    0
190 Airflow_Temperature_Cel -O---K   060   054   040    -    40 (Min/Max 38/41)
192 Power-Off_Retract_Count -O--CK   100   100   000    -    45
193 Load_Cycle_Count        -O--CK   100   100   000    -    439
194 Temperature_Celsius     -O---K   040   046   000    -    40 (0 17 0 0 0)
195 Hardware_ECC_Recovered  -O-RC-   006   002   000    -    96348069
197 Current_Pending_Sector  -O--C-   100   100   000    -    0
198 Offline_Uncorrectable   ----C-   100   100   000    -    0
199 UDMA_CRC_Error_Count    -OSRCK   200   200   000    -    0
240 Head_Flying_Hours       ------   100   253   000    -    9215h+44m+14.085s
241 Total_LBAs_Written      ------   100   253   000    -    35813865115
242 Total_LBAs_Read         ------   100   253   000    -    264868882820
                            ||||||_ K auto-keep
                            |||||__ C event count
                            ||||___ R error rate
                            |||____ S speed/performance
                            ||_____ O updated online
                            |______ P prefailure warning

General Purpose Log Directory Version 1
SMART           Log Directory Version 1 [multi-sector log support]
Address    Access  R/W   Size  Description
0x00       GPL,SL  R/O      1  Log Directory
0x01           SL  R/O      1  Summary SMART error log
0x02           SL  R/O      5  Comprehensive SMART error log
0x03       GPL     R/O      5  Ext. Comprehensive SMART error log
0x04       GPL     R/O    256  Device Statistics log
0x04       SL      R/O      8  Device Statistics log
0x06           SL  R/O      1  SMART self-test log
0x07       GPL     R/O      1  Extended self-test log
0x08       GPL     R/O      2  Power Conditions log
0x09           SL  R/W      1  Selective self-test log
0x0a       GPL     R/W      8  Device Statistics Notification
0x0c       GPL     R/O   2048  Pending Defects log
0x10       GPL     R/O      1  NCQ Command Error log
0x11       GPL     R/O      1  SATA Phy Event Counters log
0x13       GPL     R/O      1  SATA NCQ Send and Receive log
0x15       GPL     R/W      1  Rebuild Assist log
0x21       GPL     R/O      1  Write stream error log
0x22       GPL     R/O      1  Read stream error log
0x24       GPL     R/O    768  Current Device Internal Status Data log
0x2f       GPL     R/O      1  Set Sector Configuration
0x30       GPL,SL  R/O      9  IDENTIFY DEVICE data log
0x80-0x9f  GPL,SL  R/W     16  Host vendor specific log
0xa1       GPL,SL  VS      24  Device vendor specific log
0xa2       GPL     VS   16320  Device vendor specific log
0xa4       GPL,SL  VS     160  Device vendor specific log
0xa6       GPL     VS     192  Device vendor specific log
0xa8-0xa9  GPL,SL  VS     136  Device vendor specific log
0xab       GPL     VS       1  Device vendor specific log
0xad       GPL     VS      16  Device vendor specific log
0xbe-0xbf  GPL     VS   65535  Device vendor specific log
0xc1       GPL,SL  VS       8  Device vendor specific log
0xc3       GPL,SL  VS      32  Device vendor specific log
0xc9       GPL,SL  VS       8  Device vendor specific log
0xca       GPL,SL  VS      16  Device vendor specific log
0xcd       GPL,SL  VS       8  Device vendor specific log
0xd1       GPL     VS     336  Device vendor specific log
0xd2       GPL     VS   10000  Device vendor specific log
0xd4       GPL     VS    2048  Device vendor specific log
0xda       GPL,SL  VS       1  Device vendor specific log
0xe0       GPL,SL  R/W      1  SCT Command/Status
0xe1       GPL,SL  R/W      1  SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (5 sectors)
No Errors Logged

SMART Error Log Version: 1
No Errors Logged

SMART Extended Self-test Log Version: 1 (1 sectors)
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      9211         -
# 2  Short offline       Completed without error       00%      9172         -
# 3  Short offline       Completed without error       00%      9131         -
# 4  Extended offline    Completed without error       00%      9104         -
# 5  Extended offline    Interrupted (host reset)      00%      9082         -
# 6  Short offline       Completed without error       00%      9074         -
# 7  Short offline       Completed without error       00%      8965         -
# 8  Short offline       Completed without error       00%      8797         -
# 9  Short offline       Completed without error       00%      8629         -
#10  Short offline       Completed without error       00%      8461         -
#11  Short offline       Completed without error       00%      8293         -
#12  Short offline       Completed without error       00%      8125         -
#13  Short offline       Completed without error       00%      7957         -
#14  Short offline       Completed without error       00%      7789         -
#15  Short offline       Completed without error       00%      7620         -
#16  Short offline       Completed without error       00%      7452         -
#17  Short offline       Completed without error       00%      7284         -
#18  Short offline       Completed without error       00%      7116         -
#19  Short offline       Completed without error       00%      6948         -



[ds214se]

Fortsetzung vom 3. Laufwerk (/dev/sdc):

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%      9211         -
# 2  Short offline       Completed without error       00%      9172         -
# 3  Short offline       Completed without error       00%      9131         -
# 4  Extended offline    Completed without error       00%      9104         -
# 5  Extended offline    Interrupted (host reset)      00%      9082         -
# 6  Short offline       Completed without error       00%      9074         -
# 7  Short offline       Completed without error       00%      8965         -
# 8  Short offline       Completed without error       00%      8797         -
# 9  Short offline       Completed without error       00%      8629         -
#10  Short offline       Completed without error       00%      8461         -
#11  Short offline       Completed without error       00%      8293         -
#12  Short offline       Completed without error       00%      8125         -
#13  Short offline       Completed without error       00%      7957         -
#14  Short offline       Completed without error       00%      7789         -
#15  Short offline       Completed without error       00%      7620         -
#16  Short offline       Completed without error       00%      7452         -
#17  Short offline       Completed without error       00%      7284         -
#18  Short offline       Completed without error       00%      7116         -
#19  Short offline       Completed without error       00%      6948         -
#20  Short offline       Completed without error       00%      6780         -
#21  Short offline       Completed without error       00%      6612         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version:                  3
SCT Version (vendor specific):       522 (0x020a)
Device State:                        Active (0)
Current Temperature:                    40 Celsius
Power Cycle Min/Max Temperature:     38/41 Celsius
Lifetime    Min/Max Temperature:     17/46 Celsius
Under/Over Temperature Limit Count:   0/6
SMART Status:                        0xc24f (PASSED)
Vendor specific:
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 02 00 00 00 00 00 00 00 00 00 00 00

SCT Temperature History Version:     2
Temperature Sampling Period:         3 minutes
Temperature Logging Interval:        59 minutes
Min/Max recommended Temperature:     10/40 Celsius
Min/Max Temperature Limit:            5/60 Celsius
Temperature History Size (Index):    128 (122)

Index    Estimated Time   Temperature Celsius
 123    2025-04-24 12:04    40  *********************
 124    2025-04-24 13:03    40  *********************
 125    2025-04-24 14:02    40  *********************
 126    2025-04-24 15:01    41  **********************
 ...    ..(  4 skipped).    ..  **********************
   3    2025-04-24 19:56    41  **********************
   4    2025-04-24 20:55    40  *********************
 ...    ..(  2 skipped).    ..  *********************
   7    2025-04-24 23:52    40  *********************
   8    2025-04-25 00:51    38  *******************
   9    2025-04-25 01:50    36  *****************
  10    2025-04-25 02:49    38  *******************
 ...    ..(  2 skipped).    ..  *******************
  13    2025-04-25 05:46    38  *******************
  14    2025-04-25 06:45    37  ******************
 ...    ..(  4 skipped).    ..  ******************
  19    2025-04-25 11:40    37  ******************
  20    2025-04-25 12:39    38  *******************
  21    2025-04-25 13:38    37  ******************
  22    2025-04-25 14:37    37  ******************
  23    2025-04-25 15:36    37  ******************
  24    2025-04-25 16:35    38  *******************
  25    2025-04-25 17:34    38  *******************
  26    2025-04-25 18:33    38  *******************
  27    2025-04-25 19:32    39  ********************
  28    2025-04-25 20:31    38  *******************
 ...    ..(  3 skipped).    ..  *******************
  32    2025-04-26 00:27    38  *******************
  33    2025-04-26 01:26    36  *****************
  34    2025-04-26 02:25    38  *******************
 ...    ..( 12 skipped).    ..  *******************
  47    2025-04-26 15:12    38  *******************
  48    2025-04-26 16:11    37  ******************
  49    2025-04-26 17:10    37  ******************
  50    2025-04-26 18:09    40  *********************
 ...    ..( 17 skipped).    ..  *********************
  68    2025-04-27 11:51    40  *********************
  69    2025-04-27 12:50    39  ********************
  70    2025-04-27 13:49    39  ********************
  71    2025-04-27 14:48    38  *******************
  72    2025-04-27 15:47    41  **********************
  73    2025-04-27 16:46    40  *********************
  74    2025-04-27 17:45    38  *******************
  75    2025-04-27 18:44     ?  -
  76    2025-04-27 19:43    39  ********************
  77    2025-04-27 20:42    38  *******************
 ...    ..(  9 skipped).    ..  *******************
  87    2025-04-28 06:32    38  *******************
  88    2025-04-28 07:31    39  ********************
  89    2025-04-28 08:30    39  ********************
  90    2025-04-28 09:29    39  ********************
  91    2025-04-28 10:28    40  *********************
  92    2025-04-28 11:27     ?  -
  93    2025-04-28 12:26    39  ********************
  94    2025-04-28 13:25    38  *******************
  95    2025-04-28 14:24    38  *******************
  96    2025-04-28 15:23    39  ********************
  97    2025-04-28 16:22    38  *******************
  98    2025-04-28 17:21    38  *******************
  99    2025-04-28 18:20    39  ********************
 100    2025-04-28 19:19    38  *******************
 ...    ..(  2 skipped).    ..  *******************
 103    2025-04-28 22:16    38  *******************
 104    2025-04-28 23:15    41  **********************
 105    2025-04-29 00:14    41  **********************
 106    2025-04-29 01:13    41  **********************
 107    2025-04-29 02:12    40  *********************
 108    2025-04-29 03:11    41  **********************
 109    2025-04-29 04:10    40  *********************
 110    2025-04-29 05:09    41  **********************
 111    2025-04-29 06:08    40  *********************
 ...    ..(  2 skipped).    ..  *********************
 114    2025-04-29 09:05    40  *********************
 115    2025-04-29 10:04    41  **********************
 116    2025-04-29 11:03    40  *********************
 ...    ..(  5 skipped).    ..  *********************
 122    2025-04-29 16:57    40  *********************

SCT Error Recovery Control:
           Read:    100 (10.0 seconds)
          Write:    100 (10.0 seconds)



[ds214se]

Fortsetzung vom 3. Laufwerk (/dev/sdc):

Device Statistics (GP Log 0x04)
Page  Offset Size        Value Flags Description
0x01  =====  =               =  ===  == General Statistics (rev 1) ==
0x01  0x008  4              59  ---  Lifetime Power-On Resets
0x01  0x010  4            9217  ---  Power-on Hours
0x01  0x018  6     35813735534  ---  Logical Sectors Written
0x01  0x020  6       113501099  ---  Number of Write Commands
0x01  0x028  6    264868870804  ---  Logical Sectors Read
0x01  0x030  6       529479680  ---  Number of Read Commands
0x01  0x038  6               -  ---  Date and Time TimeStamp
0x03  =====  =               =  ===  == Rotating Media Statistics (rev 1) ==
0x03  0x008  4            9216  ---  Spindle Motor Power-on Hours
0x03  0x010  4            9214  ---  Head Flying Hours
0x03  0x018  4             439  ---  Head Load Events
0x03  0x020  4               0  ---  Number of Reallocated Logical Sectors
0x03  0x028  4               0  ---  Read Recovery Attempts
0x03  0x030  4               0  ---  Number of Mechanical Start Failures
0x03  0x038  4               0  ---  Number of Realloc. Candidate Logical Sectors
0x03  0x040  4              45  ---  Number of High Priority Unload Events
0x04  =====  =               =  ===  == General Errors Statistics (rev 1) ==
0x04  0x008  4               0  ---  Number of Reported Uncorrectable Errors
0x04  0x010  4               0  ---  Resets Between Cmd Acceptance and Completion
0x05  =====  =               =  ===  == Temperature Statistics (rev 1) ==
0x05  0x008  1              40  ---  Current Temperature
0x05  0x010  1              39  ---  Average Short Term Temperature
0x05  0x018  1              38  ---  Average Long Term Temperature
0x05  0x020  1              46  ---  Highest Temperature
0x05  0x028  1              17  ---  Lowest Temperature
0x05  0x030  1              43  ---  Highest Average Short Term Temperature
0x05  0x038  1              37  ---  Lowest Average Short Term Temperature
0x05  0x040  1              41  ---  Highest Average Long Term Temperature
0x05  0x048  1              37  ---  Lowest Average Long Term Temperature
0x05  0x050  4               0  ---  Time in Over-Temperature
0x05  0x058  1              60  ---  Specified Maximum Operating Temperature
0x05  0x060  4               0  ---  Time in Under-Temperature
0x05  0x068  1               5  ---  Specified Minimum Operating Temperature
0x06  =====  =               =  ===  == Transport Statistics (rev 1) ==
0x06  0x008  4               0  ---  Number of Hardware Resets
0x06  0x010  4               0  ---  Number of ASR Events
0x06  0x018  4               0  ---  Number of Interface CRC Errors
0xff  =====  =               =  ===  == Vendor Specific Statistics (rev 1) ==
0xff  0x010  7               0  ---  Vendor Specific
0xff  0x018  7               0  ---  Vendor Specific
                                |||_ C monitored condition met
                                ||__ D supports DSN
                                |___ N normalized value

Pending Defects log (GP Log 0x0c)
No Defects Logged

SATA Phy Event Counters (GP Log 0x11)
ID      Size     Value  Description
0x000a  2            1  Device-to-host register FISes sent due to a COMRESET
0x0001  2            0  Command failed due to ICRC error
0x0003  2            0  R_ERR response for device-to-host data FIS
0x0004  2            0  R_ERR response for host-to-device data FIS
0x0006  2            0  R_ERR response for device-to-host non-data FIS
0x0007  2            0  R_ERR response for host-to-device non-data FIS

Seagate Field Access Reliability Metrics log (FARM) (GP Log 0xa6)

Wenn ich die `FARM Log Page 0-5` Werte noch posten soll, mache ich das, aber das sind dann nochmal etliche Zeilen. Ansonsten wär's das bzgl. 3. Laufwerk (/dev/sdc).



[ds214se]

@maxblank
Kannst Du mit den Outputs etwas anfangen? Gibt es bestimmte Parameter, die ich mir genauer ansehen sollte? Nochmals vielen Dank!
