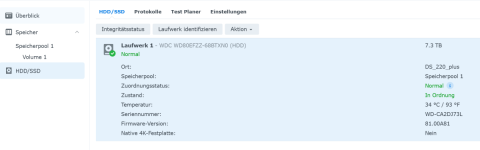

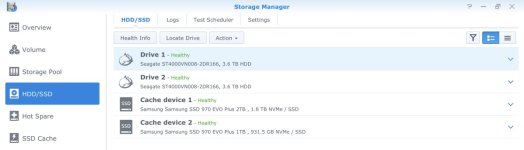

Es gibt verschiedene Ansichten im Speichermanager. Zeigst Du uns noch mal HDD, sieht dann so ähnlich aus wie hier, eine Liste aller Laufwerke im Gerät:
(Nicht verwirren lassen, das sieht bei Dir von der Gestaltung her etwas anders aus, dies ist DSM 6.2.4, Du hast 7.1 oder so).
Danach mal die DS herunterfahren, die nicht erkannte Festplatte herausziehen, einen Blick auf die Kontakte (auch im Gerät werfen), dann wieder in das Gerät einstecken wenn visuell alles in Ordnung scheint, noch mal kurz nachdrücken und das Gerät wieder hochfahren.
SHR kann theoretisch mit nur einem Laufwerk aufgesetzt werden, hat dann aber keine Fehlertoleranz. Solltest Du aus Versehen ein SHR mit nur einem Laufwerk aufgesetzt haben, so wäre dies die Vorgehensweise, es auf zwei Laufwerke zu erweitern (falls nicht ein Defekt am Laufwerk oder der DS vorliegt):
No Fault Tolerance
A single-drive SHR storage pool comes without fault tolerance.
One-Drive Fault Tolerance
A minimum of two drives is required to create an SHR storage pool that can sustain one drive failure. If you have already created a single-drive SHR storage pool, you can add another drive to increase its number of tolerable drive failures to one—an equivalent to the data redundancy of RAID 1:
- Insert a new drive into an empty drive slot.
- Do the following according to your DSM version:
- DSM 7 and above:
- Go to Storage Manager > Storage and select the SHR storage pool you want to add drive to.
- Click the
icon and select Add Drive.
- DSM 6.2 and below:
- Go to Storage Manager > Storage Pool and select the SHR storage pool you want to add drive to.
- Click Action and select Add Drive.
- Select the drive you want to add from the list. Only drives that meet the drive requirements will be listed.
- Follow the wizard to finish the process.
https://kb.synology.com/en-af/DSM/tutorial/What_is_Synology_Hybrid_RAID_SHR
